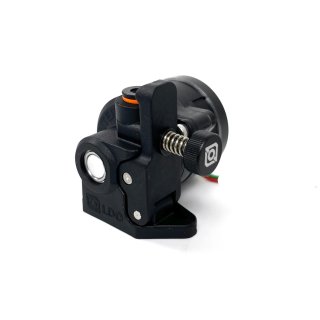

LDO Orbiter v2.0
One of the most anticipated projects of 2021, the Orbiter v2.0 high-precision direct-drive extruder developed and manufactures by LDO engine. This is our finest direct drive extruder system, incorporating everything we've learned about extruders over the years.
Features:
-
Shorter drive gears (11mm vs. 15mm)
-
Hardened Bondtech gears that reduce the total weight to ~135 grams
-
Smaller, more compact dimensions (11.6% shorter)
-
The new motor design offers an increase in thrust of about 40% under real pressure conditions and a significantly improved acceleration performance
-
Inverted drive gears - filament path closer to the extruder center for a more balanced design and perfect fit even on delta printers
-
Stainless steel filament exit guide with 0.2-0.3mm spacing to drive gears for best TPU -Printing experience and extreme wear resistance when using abrasive filaments.
-
High temperature injection molded housing, GPA12
-
Machined PEEK secondary drive wheel sleeve
-
Captive Grab Screw design clamping mechanism Fixing screws in line with the exit path of the filament - improve housing rigidity and easier assembly
-
Perfectly aligned filament path
-
New, smaller and better PTFE coupler
-
Motor position rotated another 10 degrees for easier maintenance and assembly
-
Filament sensor add-on with auto load and unload button add-on feature
-
And many more small tweaks to improve mechanical accuracy and design look
Product safety information
Manufacturer information:
LDO Motors LTD.
International Commercial Trade Building, Baoan North Road Suite 5A10
Shenzhen, China, 518023
sales@ldomotors.com
https://ldomotors.com
Responsible person:
JS-Commerce Gmbh & Co. KG
Hauptstr. 30
Bayern
Kleinrinderfeld, Deutschland, 97271
info@jacksfilament.com
https://www.JacksFilament.com
| Brand: |
LDO |
| Item weight: |
0,13 kg
|
